SPECIFICATION
1,Working Medium:Air source
2,Body material:Aluminum die-casting
3,Filter bowl and Lubricator bowl material:PC
4,Filter element material:Brass
5,Bowl Guard:Reinforced plastic
6,Seal Material:NBR
7,Adjustabing knob:POM
8,Working pressure:0.15~0.85 MPa standard
9,Working Temperature:-10~60℃
10,Filtration fineness:20µ,5µ can be available
11,Mounting type: Pipe mounting
12,Regulator type:Piston type
13,Lubricator type:Oil volume adjustable during working
14,Port size:G1/4”,G3/8”,G1/2”
15,Drainage model: Semi-automatic drainer,automatic drainer
16,Design type:Modular

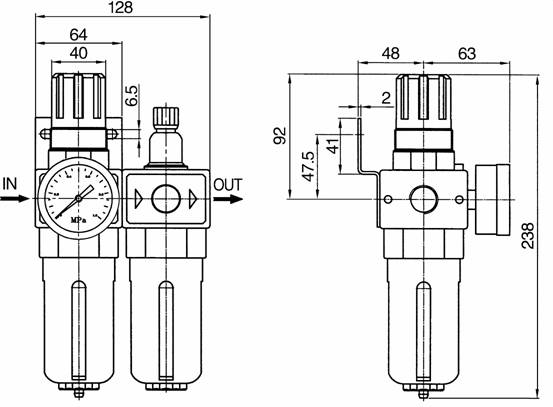

UFRL-02/03/04

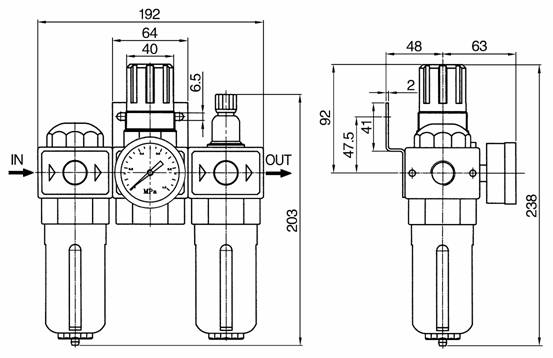

UFRL-06/08

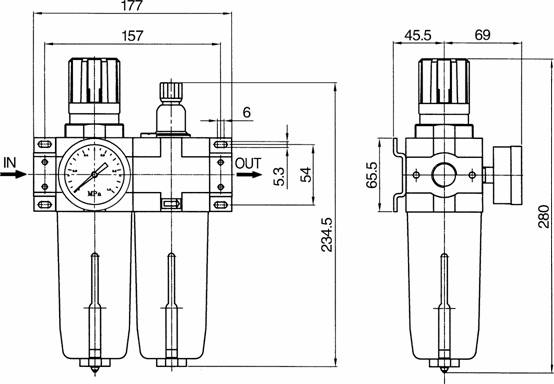

UFR/L-02/03/04
UFR/L-06/08
